POLARO® E

12 V spreader with electronic dosing

Drive with 12V
Spread width 0.8 to 6 metres
Grit up to 8 mm
Stainless steel
Cabling waterproof
Control panel LAS
Warning
Optional

POLARO® E – professional winter service with a certain added value

With the POLARO® E, you can spread salt, grit, sand, and also fertiliser using virtually any vehicle having a 12 V supply, e.g. a private car, pickup, lorry, wheel loader, mini tractor, quad bike, etc. The frame of the POLARO® E already contains all the holes required for mounting. By steplessly adjusting the spreader disc’s rotational speed from the control panel, you can infinitely adjust the spreading width from 0.8 m (footpath) to 6 m (e.g. parking space) while on the move. In addition, the POLARO® E can also control the dosage of the amount discharge rate via the control panel.

The POLARO® E offers, including:

  • Stepless adjustment of working width from 0.8 – 6.0 m (up to 12 m as an option)
  • Operation via LAS 4 control panel from the cab/driver’s seat
  • Electronic, stepless adjustment of the spreading dosage
  • One-sided spreading possible
  • Frame, valve, and spreading disc made from non-rusting stainless steel as standard
  • Cables protected in waterproof junction box
  • Autostart separates agglomerated spreading material
  • Stainless steel agitator
  • 24 V operation is possible using a transformer
  • OPTIONAL for hopper sizes 110 l and 170 l: Saline agitator for slow-flowing salt (e.g. very fine, damp salt) available at extra cost.

Fields

Winter service using ATV

Winter service using ATV

and rear-mounted POLARO® E 70

Spread grit up to 8 mm in size

Spread grit up to 8 mm in size

e.g. POLARO® E 110 and Kubota tractor

Spread road salt

Spread road salt

POLARO® E 170 on a narrow-gauge tractor

Technical data

Spreading width: 0.8 – 6 m
Motor power spreading disc: 60 W
Motor power agitator: 150 W
Fuse: 25 A
Speed range spreading disc: 40 – 600 rpm
Speed range agitator: 54 rpm
Power consumption: When starting, up to 24 A
normal operation up to 13 A
Operating voltage: 12 to 15 V
Operating temperature: -10 to +70 °C
Storage temperature: -30 to +70 °C
Battery cable 70 l: 3 m
Battery cable 110 to 250 l: 5 m (4.0 mm²)
Control cable 70 l: 3 m
Control cable 110 to 250 l: 6 m
POLARO E 70
Hopper capacity: 70 l
Hopper capacity: 490 x 585 x 870 mm
Weight: 29 kg
Capacity, salt: approx. 90 kg
Spreading area: approx. 4000 m²

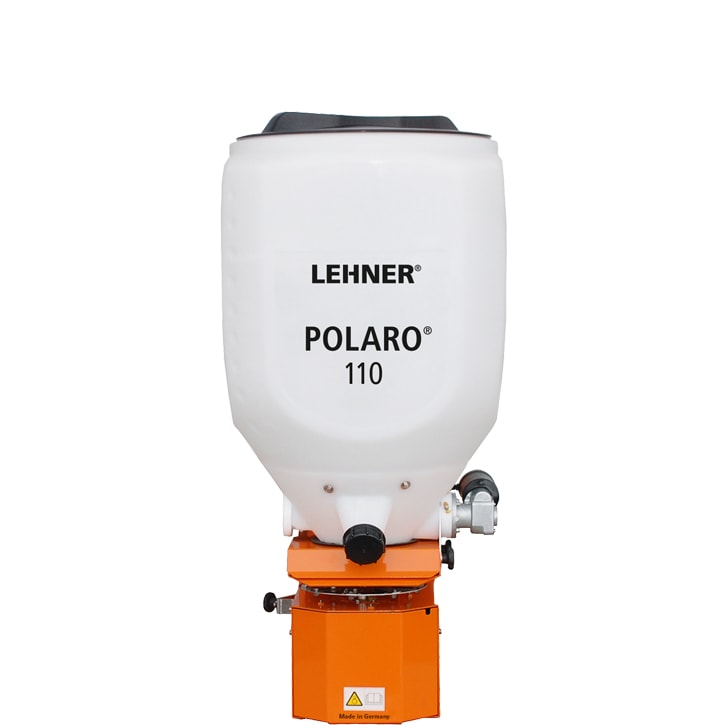

POLARO E 110
Hopper capacity: 110 l
Dimensions (LxWxH): 490 x 585 x 1050 mm
Weight: 38 kg
Capacity, salt: approx. 140 kg
Spreading area: approx. 6000 m²
POLARO E 170
Hopper capacity: 170 l
Dimensions (LxWxH): 690 x 610 x 1100 mm
Weight: 42 kg
Capacity, salt: approx. 220 kg
Spreading area: approx. 10,000 m²
POLARO E 250
Hopper capacity: 250 l
Hopper capacity 785 x 670 x 1230 mm
Weight: 53 kg
Capacity, salt: approx. 325 kg
Spreading area: approx 14,000 m²

Special features of the POLARO® E

LAS control panel as standard

Spreading with comfort and convenience – the LAS 4 control panel with empty indicator. As well as setting the working width by infinitely adjusting the rotational speed of the spreading disc, all other switching functions are also controlled via the control panel. These include On/Off, setting the adjustment valve for spreading dosage, checking the voltage, etc. What’s more, the control panel issues a visual and acoustic warning when the hopper level is down to minimum or the valve is not in position.

Electronic dosing

Electronic dosing The dosage of the POLARO® E is also adjusted on the control panel. Enjoy even greater convenience with speed-dependent dosage via the AUTO-DOSIS control unit.

Stainless steel agitator

Stainless steel agitator The patented LEHNER agitator system guarantees a continuous flow of free-flowing material.

OPTIONAL: AUTO-DOSIS

AUTO-DOSIS automatically adjusts the valve position in line with the driving speed. After you have selected the material, entered the desired spreading width and quantity per m², the AUTO-DOSIS automatically reacts to driving conditions and controls the dosing valve accordingly. The desired discharge quantity per m² remains constant. 1. AUTO-DOSIS via 7-pin signal socket Here, the travel speed is recorded via the 7-pin signal socket on the vehicle. In this version, the signal socket also provides the headland management system. 2. AUTO-DOSIS via GPS receiver The speed is determined by GPS and forwarded to the control panel.

AUTO-DOSIS

Downloads

1. select category

Brochure

POLARO® E

2 MB
